P2P Analytics

The P2P Analytics dashboard provides a breakdown of peer-to-peer traffic detected on your network. It correlates traffic-level data with IDS and blacklist alerts to give both a volume view and a security view of P2P activity.

navigation

👉 Go to NBAD → P2P Analytics

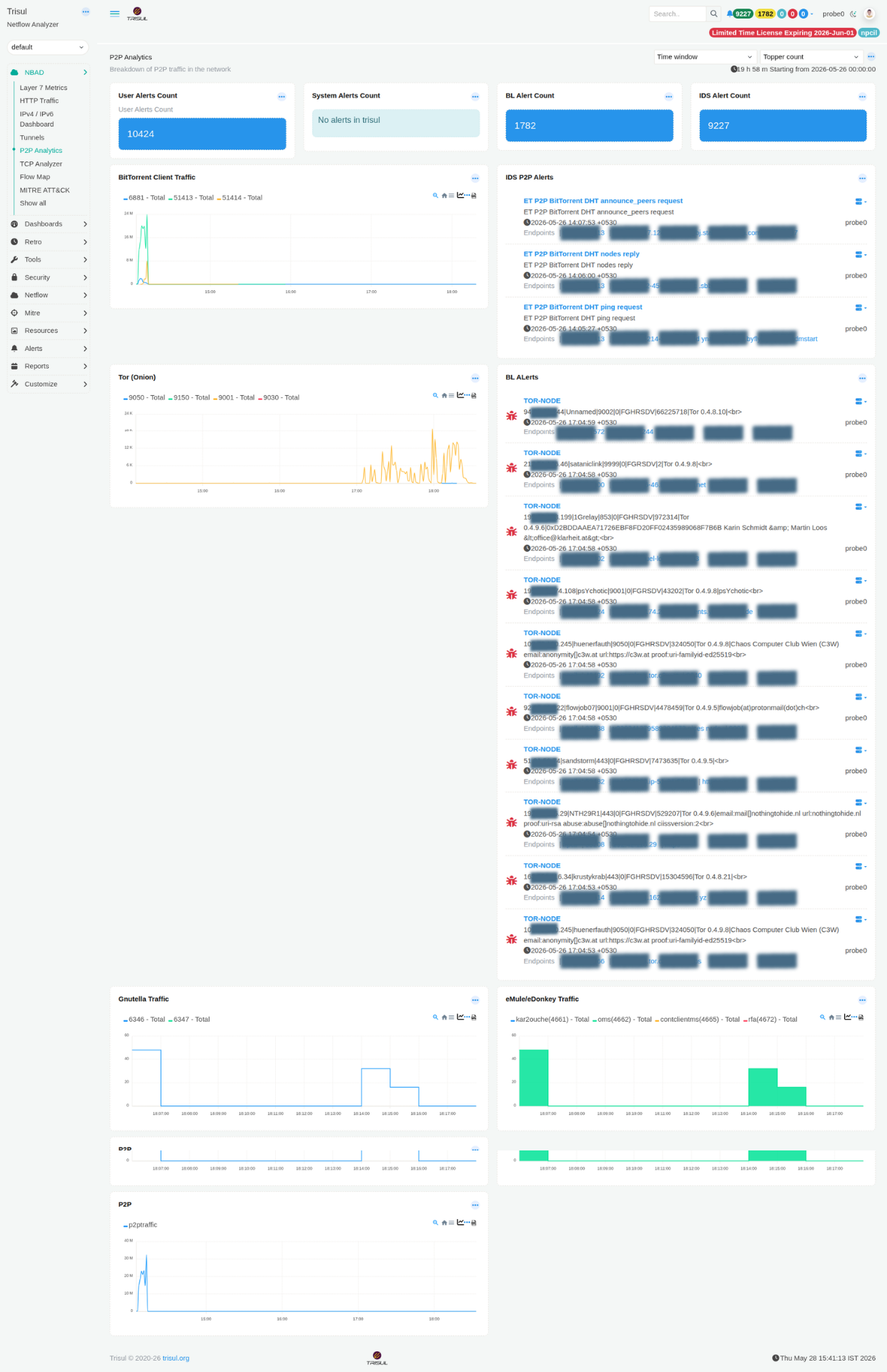

Figure: P2P Analytics: alert counts, BitTorrent, Tor, Gnutella, eMule traffic charts, and live IDS/BL alerts

Breakdown of peer-to-peer traffic on the network. Correlates traffic-level data with IDS and blacklist alerts to provide both a volume view and a security view of P2P activity.

Alert count tiles

Tile	Source	Description
User Alerts Count	Trisul user alerts	Total number of active user-defined alerts currently configured in the system.
System Alerts Count	Trisul self-monitoring	System-generated alerts from Trisul internal monitoring, including events such as packet drops, memory pressure, or resource exhaustion.
BL Alert Count	Threat intelligence feeds	Blacklist alerts triggered by connections matching known malicious IPs, domains, or Tor exit nodes.
IDS Alert Count	IDS (e.g. Suricata)	Intrusion detection alerts generated by the integrated IDS engine.

Traffic modules

Modules	Protocols / Ports	Description
BitTorrent Client Traffic	6881, 51413, 51414	Time-series view of BitTorrent traffic across tracked ports. Traffic spikes typically indicate active torrent sessions. Different traffic phases such as DHT activity, peer exchange, and payload transfer can often be inferred from port behaviour.
Tor (Onion)	9050, 9150, 9001, 9030	Traffic observed on commonly used Tor ports. Persistent Tor communication originating from internal hosts is often considered a high-confidence indicator of policy violations, anonymization attempts, or evasion activity.
Gnutella Traffic	6346, 6347	Time-series monitoring of Gnutella peer-to-peer traffic activity.
eMule/eDonkey Traffic	4661, 4662, 4665, 4672	Tracks eMule/eDonkey traffic across characteristic protocol ports including kar2ouche (4661), oms (4662), contclientms (4665), and rfa (4672).
D²D / P2P	Various	Generic peer-to-peer traffic counter tracking aggregate P2P communication flows across multiple protocols and ports.

Alert feed Modules

Modules	Alert type	Description
IDS P2P Alerts	IDS signatures	Live feed of IDS alerts classified as peer-to-peer activity. Entries include alert signature, description, timestamp, source and destination IPs/ports, and probe information. Example signatures include ET P2P BitTorrent DHT announce_peers request and ET P2P BitTorrent DHT nodes reply.
BL Alerts	Blacklist / threat intel	Displays connections matching known Tor nodes or blacklisted infrastructure. Entries include indicator type (such as TOR-NODE), remote IP, destination port, resolved hostname, timestamp, probe, and endpoint details.
