Scale NetFlow monitoring for large enterprises

Field	Value
App Note ID	AN-002
Audience	Trisul administrators, NOC and network engineers running Trisul NetFlow Analyzer with many routers and interfaces

Summary

The NetFlow Analyzer product mode sets Trisul up for flow input, but its key limits suit a modest number of routers and interfaces. This note raises the topper and key limits for the router, interface and per-interface crosskey counter groups, adds a flow tracker to each busy interface, and creates interface utilization alerts. It ends by pointing to SNMP name resolution (AN-001).

The problem

Each Trisul counter group tracks a bounded number of keys. When the number of keys passes the High Water Mark, Trisul prunes them down to the Low Water Mark. Each topper interval, it stores only the top K keys per meter, where K is the Top-K Count.

In a large enterprise the router counter group (FlowGens) and the interface counter group (FlowIntfs) can hold thousands of keys. The per-interface crosskeys (FlowIntf_bx_*) hold the product of interfaces and hosts, apps or other keys, so they grow faster still. If the limits are lower than the real key count, routers, interfaces and per-interface breakdowns drop out of toppers and long-term reports.

Long-term drilldowns built from raw flows also lose accuracy on high-traffic links. A per-interface flow tracker keeps the top flows for each tracked interface.

Reference: Counter Group Settings

How it works

The probe meters every flow into the router counter group FlowGens and the interface counter group FlowIntfs. Crosskey counter groups named FlowIntf_bx_* (and Interface_bx_Interface) break each interface down further. The NetFlow Analyzer product mode creates these crosskeys: Hosts, Apps, ASN, Protocol, NBAR/AppID, User-ID and App-ID per interface, plus Interfaces per interface.

Key limits (step 2). Each counter group has a High Water Mark, a Low Water Mark and a Top-K Count. The bulk Edit Counter Group panel writes the watermarks to every selected counter group. It writes the Top-K Count to every meter of each selected group. The High Water Mark must be greater than the Low Water Mark.

Interface flow trackers (step 3). Flow Tracker Only creates one flow tracker per selected interface, named IFTRACK_Tracker_<interface>. The interface part is the router IP and ifIndex, for example IFTRACK_Tracker_192.168.10.1_7. It keeps the top 100 flows of that interface and commits every 300 seconds. Create Tracker adds two filtered counter groups per interface (IFTRACK_Apps_<interface>, IFTRACK_Hosts_<interface>) as well. The per-interface crosskeys already hold that data, so the wizard offers Flow Tracker Only when they exist.

Utilization alerts (step 4). The Utilization Alert tab creates six threshold crossing alerts (TCAs) on FlowIntfs: High, Medium and Low, each for the Recv-Util and Xmit-Util meters (percent). Each TCA fires after one interval above its threshold. It clears after one interval below the threshold minus 10 points.

Counter group and tracker changes take effect after you restart the probe context.

Reference: NetFlow Wizard, Interface Tracking, Cross Key Counter Groups

Prerequisites

• Trisul is installed and you can log in to the web UI as admin.
• The probe is receiving NetFlow. The NetFlow Wizard lists only routers and interfaces that have already sent flows; the docs advise waiting 15–20 minutes after flows start before using the Interfaces tab.
• You have shell access to the probe node, as root, to run trisulctl_probe.
• You have decided the utilization percentages that should raise High, Medium and Low alerts.
• For step 5: SNMP read access from the Trisul web server to your routers (see app note ID AN-001).

Reference: Selecting the Product Mode, trisulctl

Procedure

Log in as admin for steps 1 to 4.

Step 1 – Select the NetFlow Analyzer product mode

1. Log in to the web UI as admin. On first login the How do you plan to use Trisul? dialog opens.
2. If it does not open, go to Web Admin → Manage → App Settings → UI, select Show mode selection and click Save. Log in again.
3. Select the NetFlow Analyzer card; its radio button is selected. The other cards are IPDR Compliance, Security Monitoring and ISP Analytics Suite.
4. Click Next.
5. Select the network interfaces that receive NetFlow.
6. Click Configure.

The Applying mode NetFlow Analyzer -- default dialog stops and restarts the hub and probe contexts, then shows Success ! Next steps. Click Close. The output should look something like this:

Stop Hub    Successfully stopped context processes: default@hub0
Stop Probe  Context is already stopped
Start Hub   Successfully started context processes: default@hub0
Start Probe Successfully started context processes: default@probe0

The mode sets the probe to NETFLOW_TAP, turns off the packet ring and creates all the per-interface crosskey trackers listed in How it works.

Reference: Selecting the Product Mode

Step 2 – Raise the key limits

Set these values in the bulk Edit Counter Group panel. They are the HowTo's values for a large enterprise; size them to your router and interface counts.

Counter groups	Filter text	High Water Mark	Low Water Mark	Top-K Count
Routers: FlowGens	FlowGens	2500	2000	2500
Interfaces: FlowIntfs	FlowIntfs	10000	9000	10000
Per-interface crosskeys: the seven FlowIntf_bx_* groups (ASN, AppID, Apps, Hosts, NBARAppID, Protocol, UserID)	FlowIntf_bx	50000	45000	50000

Repeat these actions for each row of the table:

navigation

👉 Go to Context: default → profile0 → Counter Groups

1. Type the filter text in the filter bar at the top right of the list.
2. Select the checkbox of a listed counter group. A menu opens beside it.
3. Click Select All in that menu. Only the rows the filter shows are selected; check that they are the groups in the table row.

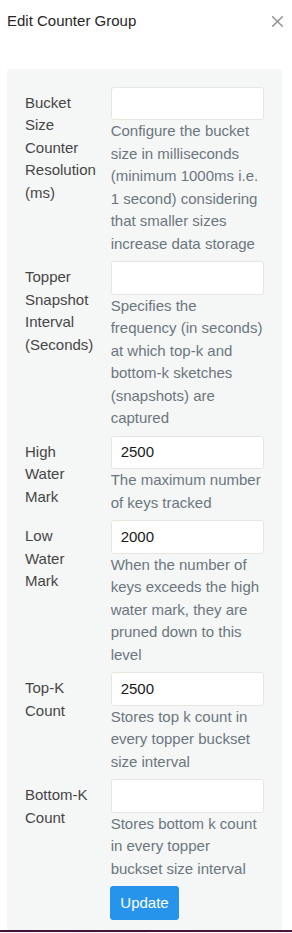

4. In the same menu, click Edit. The Edit Counter Group panel opens. The menu hides after about 5 seconds; to reopen it, clear and re-select any selected checkbox.
5. Fill in the fields:

Field Name	Description
High Water Mark	The value from the table
Low Water Mark	The value from the table
Top-K Count	The value from the table
Other fields	Leave empty; empty fields are not changed

6. Click Update.

Check: a Successfully updated counter groups message appears at the top right, and the edited groups show a new last-modified time in the list. The changes take effect when the probe context restarts at the end of step 3.

Reference: Counter Group Settings – Bulk Edits

Step 3 – Create interface flow trackers

navigation

👉 Go to Context: default → profile0 → NetFlow Wizard

1. Open the Interfaces tab.
2. In Select a Router to display interfaces, select a router. Its interfaces are listed.
3. Select the interfaces to track, or click Select All above the list.

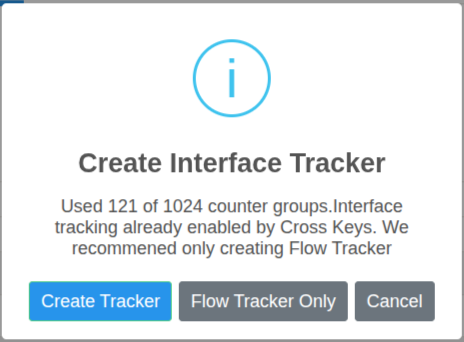

4. Click Interface Tracking → Enable Interface Tracking. The Create Interface Tracker dialog opens.
5. Click Flow Tracker Only.
6. Repeat steps 2 to 5 for each router.

The dialog shows how many of the 1024 counter groups are in use. Flow Tracker Only appears only when the FlowIntf_bx_Hosts crosskey exists, which step 1 creates. Interfaces that already have a tracker are skipped.

Check: the page shows Successfully enabled Interface Tracking tracker. Restart Trisul Probe at the bottom right, and each newly tracked interface shows the eye icon.

Restart the probe context on the probe node, as root:

trisulctl_probe restart context default@probe0

restart context runs stop context and then start context; you can also run those two commands yourself. Replace probe0 with your probe ID if it differs. Expected output:

stop context default@probe0
   + probe0               stopped Successfully stopped context processes: default@probe0
 start context default@probe0
   + probe0               started Successfully started context processes: default@probe0

Reference: Interface Tracking, trisulctl – Start and Stop Contexts

Step 4 – Create interface utilization alerts

navigation

👉 Go to Context: default → profile0 → NetFlow Wizard

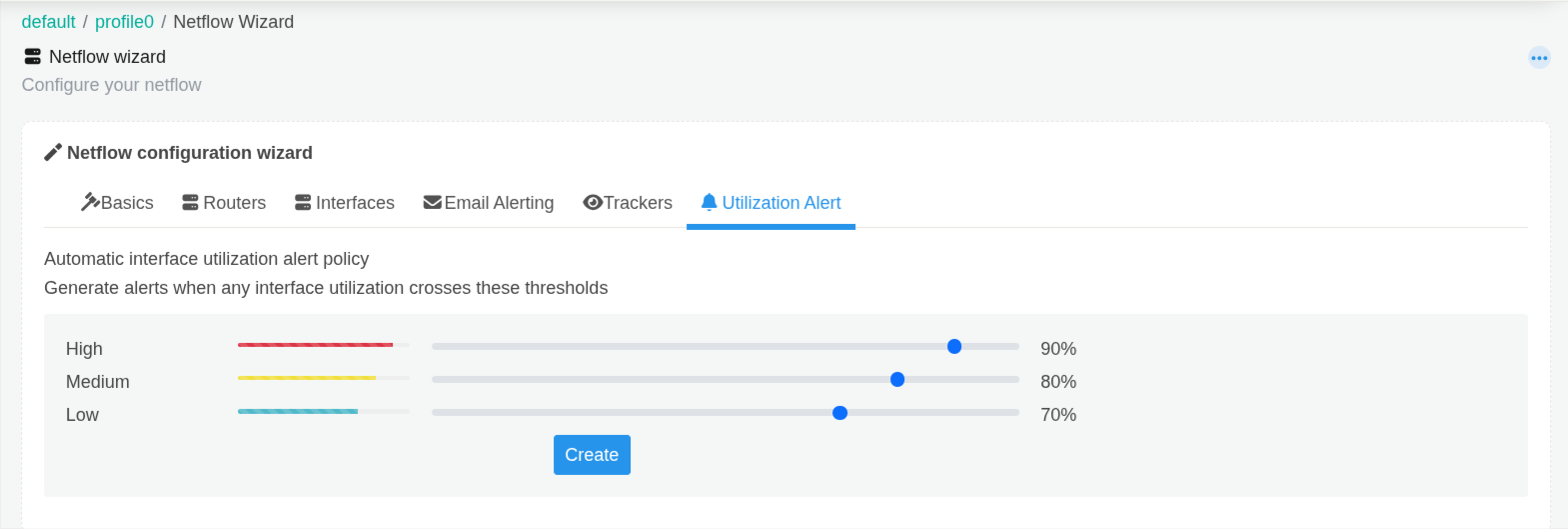

1. Open the Utilization Alert tab.
2. Fill in the fields:

Field Name	Description
High	Slider: the utilization percentage that should raise a High alert. Default 90
Medium	Slider: the utilization percentage that should raise a Medium alert. Default 80
Low	Slider: the utilization percentage that should raise a Low alert. Default 70

3. Click Create.

Check: the page reloads on the Utilization Alert tab with a Successfully configured interface utilization alert policy banner at the top. The sliders keep your saved values.

Restart the probe context as in step 3.

Reference: NetFlow Wizard – Interface Utilization Alert

Step 5 – Configure SNMP

Resolve router names, interface names and interface speeds over SNMP. Follow app note ID AN-001

Verify the result

Where	Expected result
Context: default → profile0 → Counter Groups, filter FlowIntf_bx	Seven crosskey groups listed as Crosskey and Enabled
Edit Counter Group for FlowGens, FlowIntfs or a FlowIntf_bx_* group	High Water Mark and Low Water Mark show the step 2 values

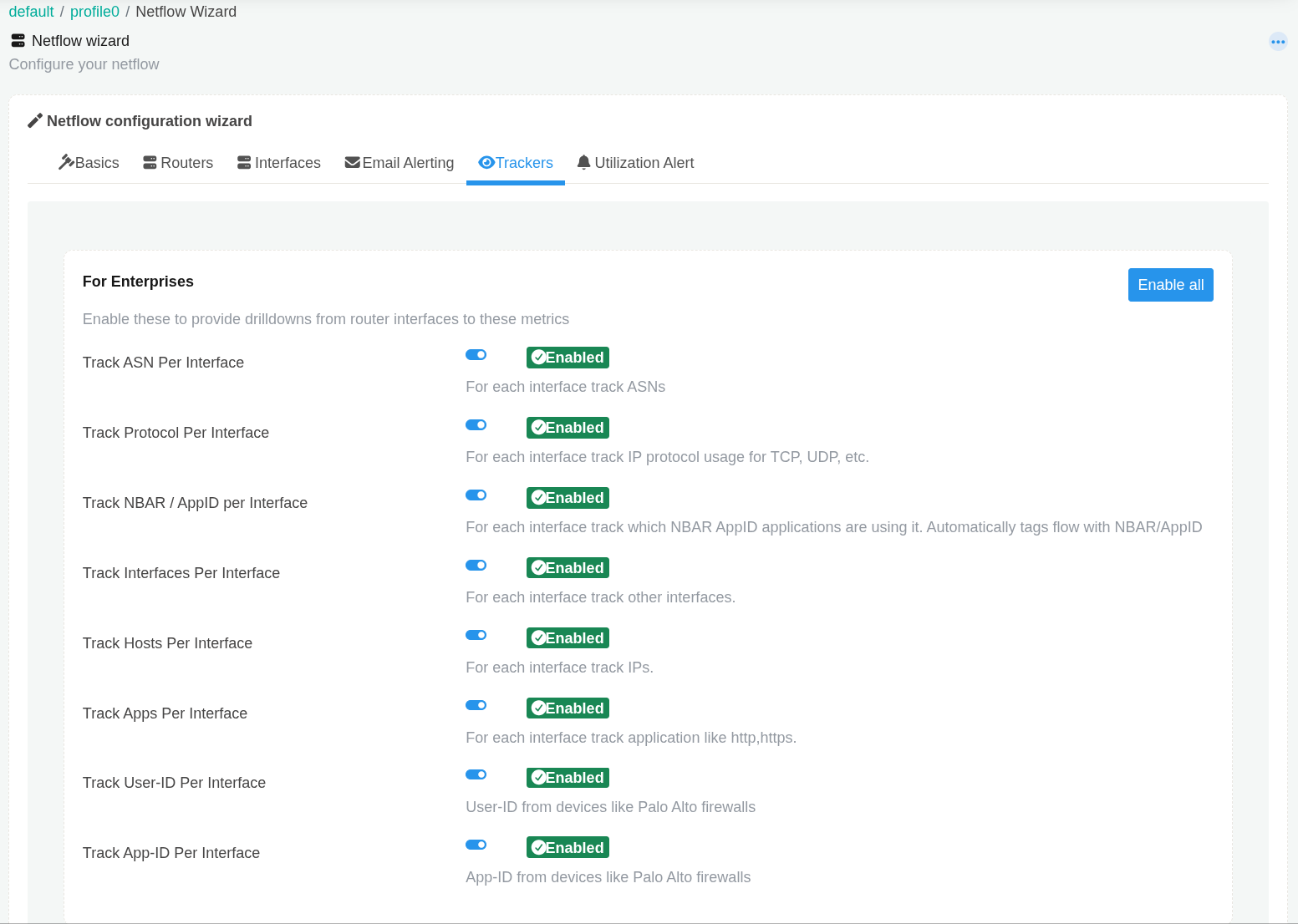

NetFlow Wizard → Trackers	Each For Enterprises tracker shows Enabled
NetFlow Wizard → Interfaces, after selecting a router	Tracked interfaces show an eye icon; untracked ones show a crossed-out eye
Context: default → profile0 → Flow Trackers	One IFTRACK_Tracker_<interface> entry per tracked interface, for example IFTRACK_Tracker_192.168.10.1_7, with 300, 100 and Enabled
NetFlow Wizard → Utilization Alert	Sliders show your High, Medium and Low values
Alerts → Threshold Crossing Alerts (as user)	Interface utilization alerts appear when an interface crosses a threshold. The alert text reads Router interface Recv utilization has crossed <n> percent or Router interface xmit utilization has crossed <n> percent

With the default sliders, Alerts → Threshold Crossing Alerts lists these six entries.

Name	Target	Metric	Priority	Fire when	Clear when
Flowintf_util_Recv_high	0toZ FlowIntfs	Recv-Util Pct	High	over 90 for 1 intervals	under 80 for 1 intervals
Flowintf_util_xmit_high	0toZ FlowIntfs	Xmit-Util Pct	High	over 90 for 1 intervals	under 80 for 1 intervals
Flowintf_util_Recv_medium	0toZ FlowIntfs	Recv-Util Pct	Medium	over 80 for 1 intervals	under 70 for 1 intervals
Flowintf_util_xmit_medium	0toZ FlowIntfs	Xmit-Util Pct	Medium	over 80 for 1 intervals	under 70 for 1 intervals
Flowintf_util_Recv_low	0toZ FlowIntfs	Recv-Util Pct	Low	over 70 for 1 intervals	under 60 for 1 intervals
Flowintf_util_xmit_low	0toZ FlowIntfs	Xmit-Util Pct	Low	over 70 for 1 intervals	under 60 for 1 intervals

0toZ means every key in FlowIntfs, so the alerts cover all interfaces. TCAs you created yourself stay in the list unchanged.

Reference: Threshold Crossing Alerts – View TCAs

Troubleshooting

Symptom or message	Cause	Fix
TrackHiWater must be greater than TrackLoWater	The High Water Mark is not above the Low Water Mark. The panel shows this in red under High Water Mark, and TrackLoWater must be less than TrackHiWater under Low Water Mark; nothing is saved	Enter a High Water Mark greater than the Low Water Mark
Interfaces tab shows Unable to get routers and interfaces to configure	The context has no NetFlow data yet	Check that NetFlow reaches the probe, wait, then reopen the tab
Please select router to get interfaces	No router selected	Select a router in Select a Router to display interfaces
Please select at least one interface to continue	No interface checkbox selected	Select interfaces or click Select All
Create Interface Tracker dialog has no Flow Tracker Only button	The FlowIntf_bx_Hosts crosskey does not exist	In NetFlow Wizard → Trackers, turn on Track Hosts Per Interface (or click Enable all), then repeat step 3
Error Creating interface tracker <message>	Saving the tracker failed; the message gives the reason	Act on the message, then retry
SNMP tools not installed on this server on the Routers or Interfaces tab	net-snmp tools are missing on the web server	Install them as in AN-001; names cannot be resolved without them
New limits, trackers or alerts have no effect	The probe context has not restarted	Restart the context (step 3)

Limitations

• Applies to Trisul NetFlow Analyzer (flow input).
• The limit values in step 2 are the HowTo's figures for a large enterprise, not a sizing rule.
• The tracker dialog counts the counter groups in use against 1024. Create Tracker adds two counter groups per interface; Flow Tracker Only adds none.
• Interface tracking uses extra disk space. The docs estimate 20–30 MB per interface per day.
• The NetFlow Wizard lists only routers and interfaces that have already sent flows. Repeat step 3 when new routers or interfaces appear.
• With a free license, the wizard lists two routers and the top-100 interface tracking option is not available.
