Trisul Basic Architecture

Trisul's core components are the Probe, which processes traffic, and the Hub, which stores the results. They communicate inside a Domain. The list below also covers three related terms: Profile, Context and WebTrisul.

basic

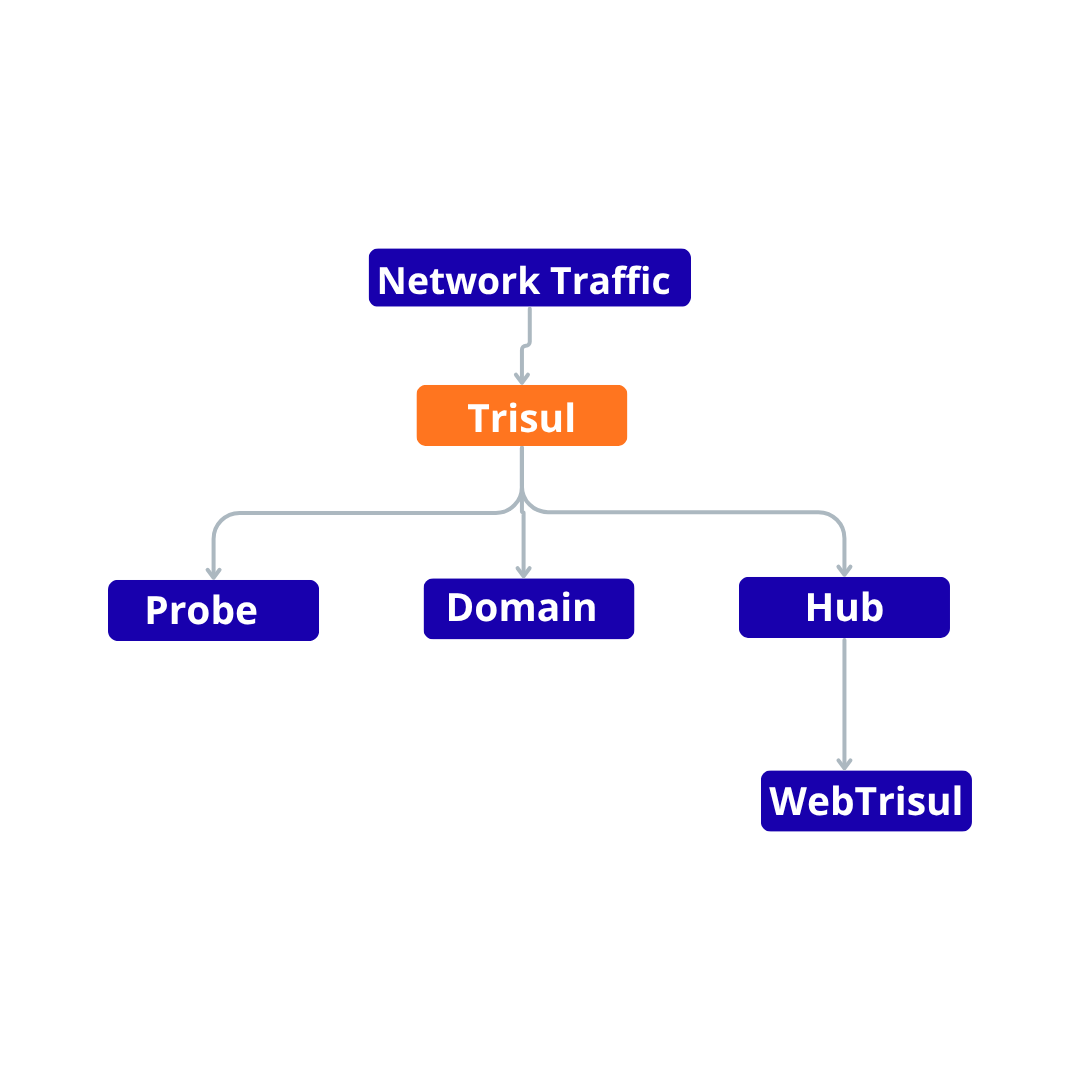

Figure: Trisul Basic Architecture

At a high level:

  • Probe is the streaming analytics engine that processes network traffic.

  • Domain is the trusted group of Probes and Hubs that can communicate securely. The Domain Certificate authenticates each node and provides its network endpoints.

  • Hub is the database and data management layer that stores the processed data.

  • Profile is the configuration associated with a Probe. Each Probe can have its own Profile.

  • Context provides the logical environment in which traffic data is organized and stored.

  • WebTrisul provides the user interface for accessing and analyzing the data managed by the Hub.

note

This is a high-level view of the main components and how they relate to each other. It is not a complete representation of the Trisul architecture. For a detailed view, see Distributed Domain Concepts.
